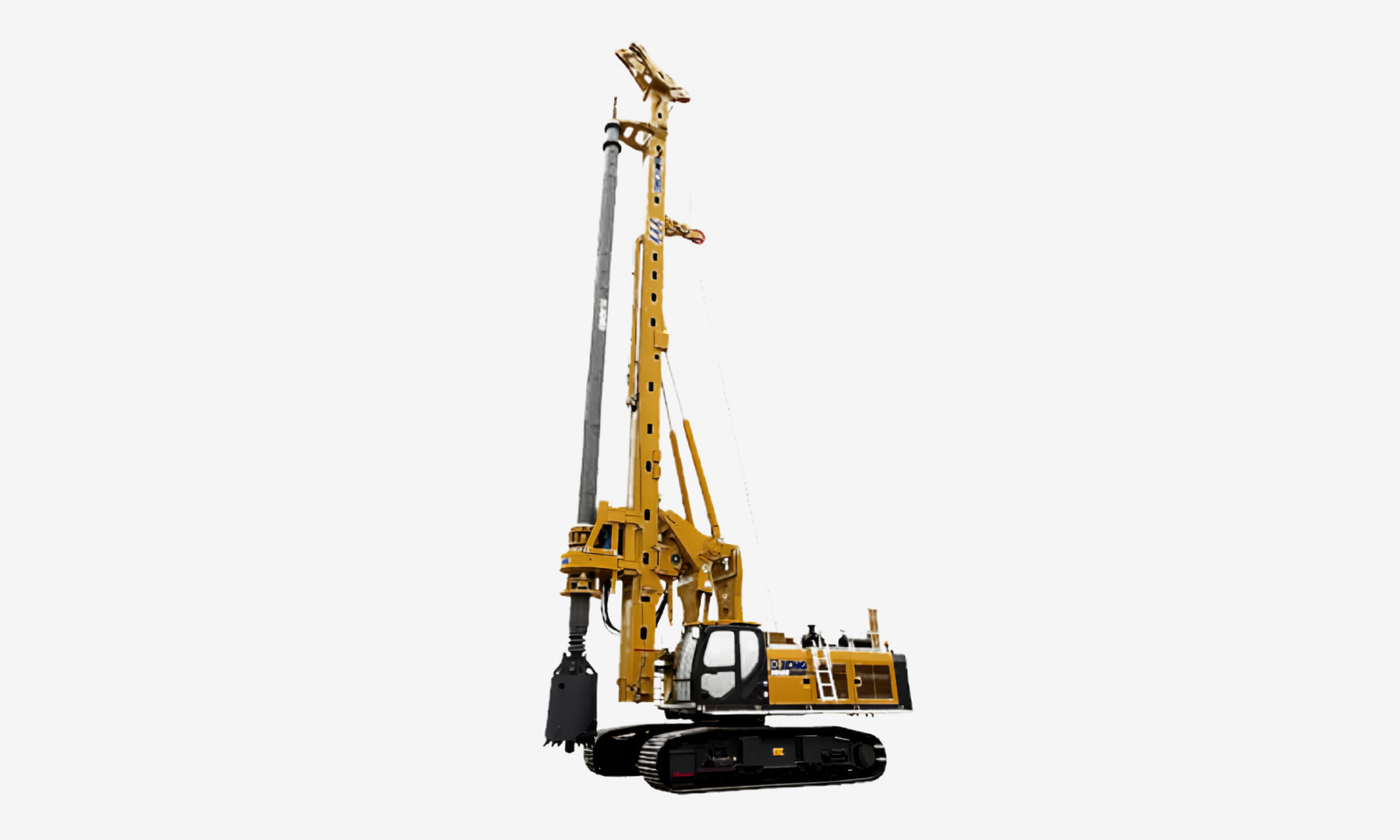

XR240E
Details
| Engine Model: | 6UZ1X |
| Engine Rated Power: | 270kW/2000r/min |
| Rotary Drive Max Output Torque: | 240kNm |
| Rotary Drive Rotary Speed: | 7-30r/min |
| Max Drilling Diameter: | 2200mm |
| Max Drilling Depth: | 70m |
| Crowd Cylinder Max Push / Pull Force: | 210/220kN |
| Crowd Cylinder Max Stroke: | 5m |
| Crowd Winch Max Push / Pull Force: | 250kN (Optional) |
| Crowd Winch Max Stroke: | 13m (Optional) |
| Main Winch Max Pull Force: | 240kN |
| Main Winch Max Line Speed: | 70m/min |
| Auxiliary Winch Max Pull Force: | 80kN |
| Auxiliary Winch Max Line Speed: | 70m/min |
| Mast Inclination: | ± 4° / 5° / 15° |
