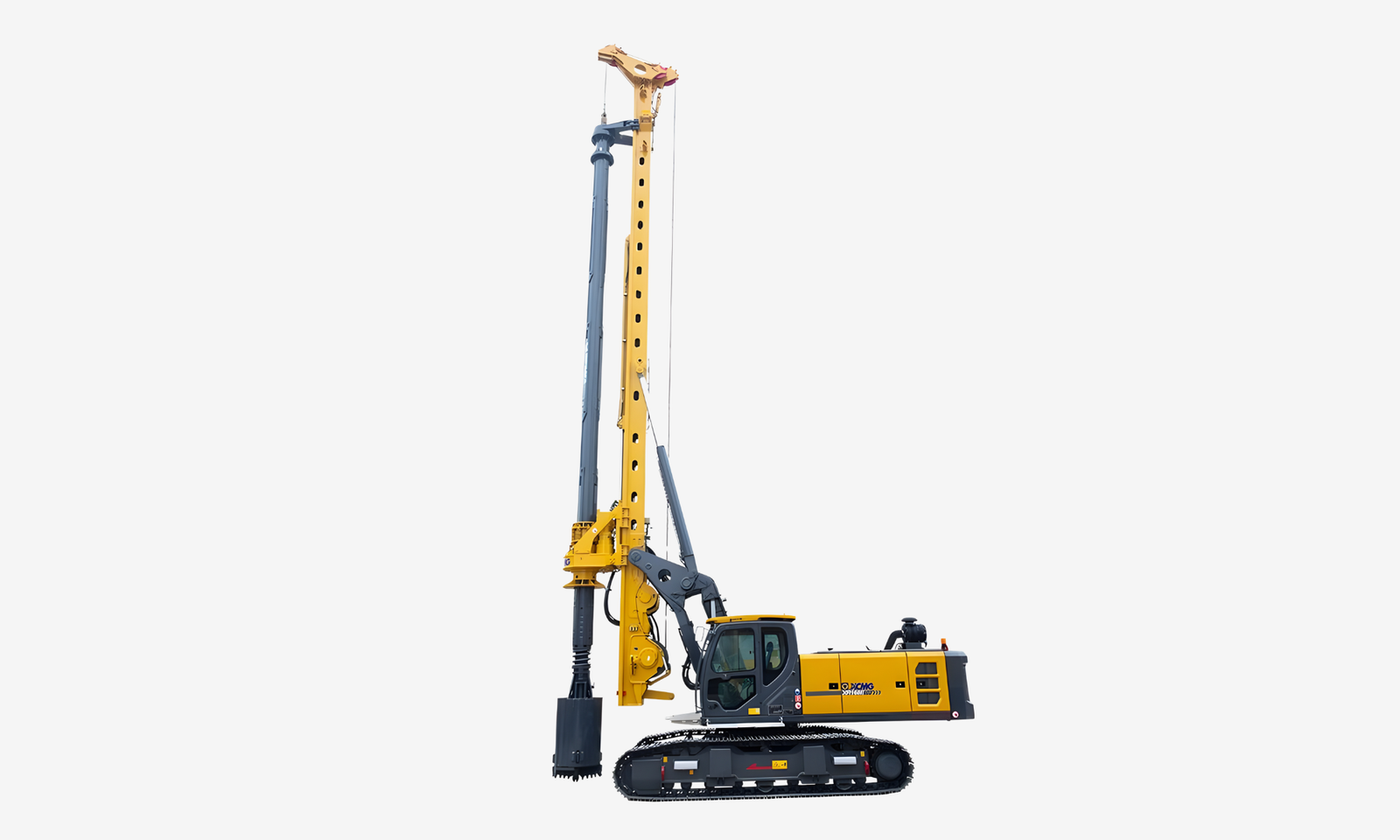

XR200E
Details
| Engine Model: | 6HK1X |
| Engine Rated Power: | 212kW |
| Rotary Drive Max Output Torque: | 210 kN.m |
| Rotary Drive Rotary Speed: | 7-30r/min |
| Max Drilling Diameter: | 1800mm |
| Max Drilling Depth: | 65m |
| Crowd Cylinder Max Push / Pull Force: | 210kN |
| Crowd Cylinder Max Stroke: | 4.8m |
| Crowd Winch Max Push / Pull Force: | 210kN |
| Crowd Winch Max Stroke: | 13m |
| Main Winch Max Pull Force: | 190kN |
| Main Winch Max Line Speed: | 75m/min |
| Auxiliary Winch Max Pull Force: | 80kN |
| Auxiliary Winch Max Line Speed: | 70m/min |
| Mast Inclination: | ±4/5/15° |
